Bitumen Membrane:

Bitumen Membrane: The Integrated Engineering Solution for Protecting Structures Against Water Leakage

Moisture and water accumulation are among the most dangerous factors threatening the structural integrity of buildings. Over time, they lead to concrete deterioration and steel corrosion. At Taj Al Rahmah, we recognize that choosing the right waterproofing system is the most critical investment in a building’s lifespan. Therefore, in this article, we highlight Bitumen Membranes as one of the world's most trusted and approved waterproofing solutions.

What is a Bitumen Membrane?

Bitumen membranes are waterproofing shields made from Modified Bitumen. They are internally reinforced with layers of polyester or fiberglass to provide the necessary strength and flexibility. They usually come in rolls with a thickness typically ranging from 3 mm to 4 mm.

Why Do We Rely on Bitumen Membranes in Our Projects?

These membranes possess characteristics that make them the first choice for contractors and engineers, most notably:

  • Superior Water Resistance: Provides a completely impermeable protective layer against rainwater and groundwater.

  • High Flexibility: Thanks to additives like SBS or APP, the membranes withstand minor structural movements without cracking.

  • Long Lifespan: They resist soil chemical reactions and temperature fluctuations for many years.

  • Strong Adhesion: When installed correctly, they bond perfectly to the concrete surface, preventing water from seeping under the insulation layer.

Common Types of Bitumen Membranes

  • APP (Atactic Polypropylene): Modified with thermoplastic, making it ideal for high-temperature regions (such as the Gulf countries) due to its high UV resistance.

  • SBS (Styrene Butadiene Styrene): Modified with synthetic rubber, offering extreme flexibility, making it best for areas exposed to severe cold or constant thermal expansion and contraction.

Professional Waterproofing Stages at "Taj Al Rahmah"

To ensure maximum efficiency, we follow precise steps during execution:

  1. Surface Preparation: Thoroughly cleaning the surface and treating any cracks or honeycombing in the concrete.

  2. Priming: Applying a liquid bitumen primer to ensure strong adhesion of the membranes.

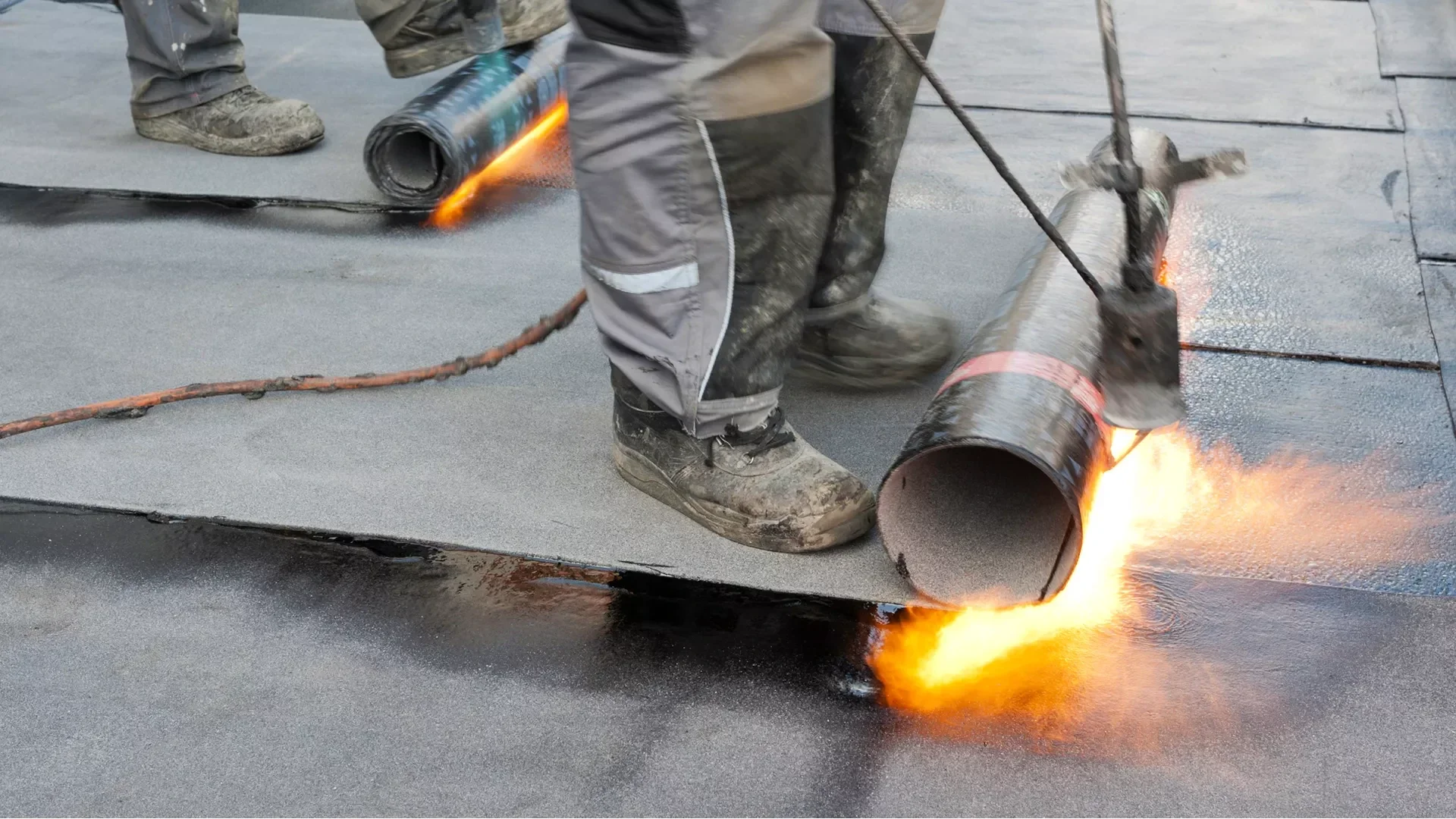

  3. Torch Welding: Using a blowtorch to heat the underside of the membrane and bond it accurately.

  4. Overlapping: Ensuring a proper overlap (approximately 10 cm) and carefully welding the joints to eliminate any gaps.

  5. Testing: Conducting a flood test to ensure the success of the waterproofing process before proceeding to the next steps.

Why Choose "Taj Al Rahmah" for Bitumen Waterproofing?

In a market full of options, Taj Al Rahmah Establishment is proud to offer standards that make us your trusted partner. Choosing us means you get:

  • Specialized Technical Expertise: We don’t just install; we have a team of trained technicians capable of dealing with various surfaces and foundations to ensure every detail is addressed.

  • Premium Global Materials: We are committed to supplying bitumen membranes that meet international standards (both APP and SBS) from top manufacturers to ensure maximum durability.

  • Precision in Execution and Welding: We pay ultimate attention to "overlap zones" and joints—the critical points where leaks usually occur—using thermal welding techniques that fuse layers into a single unit.

  • Commitment to Schedule: We value our clients' time; therefore, we commit to delivering projects on schedule while maintaining the highest quality standards.

  • Warranty and After-Sales Service: We provide real warranties on our work, along with periodic inspection services to ensure the long-term efficiency of the insulation.

Conclusion

Building insulation is not just a supplementary step; it is the safety shield that protects your investment. At Taj Al Rahmah, we take pride in offering our consultations and services in supplying and installing the best types of waterproofing to ensure a safe and moisture-free environment.
